Fire Extinguisher Bracket for 2021+ Ford F-150 14th Gen
Fire Extinguisher Bracket for 2021+ Ford F-150 14th Gen

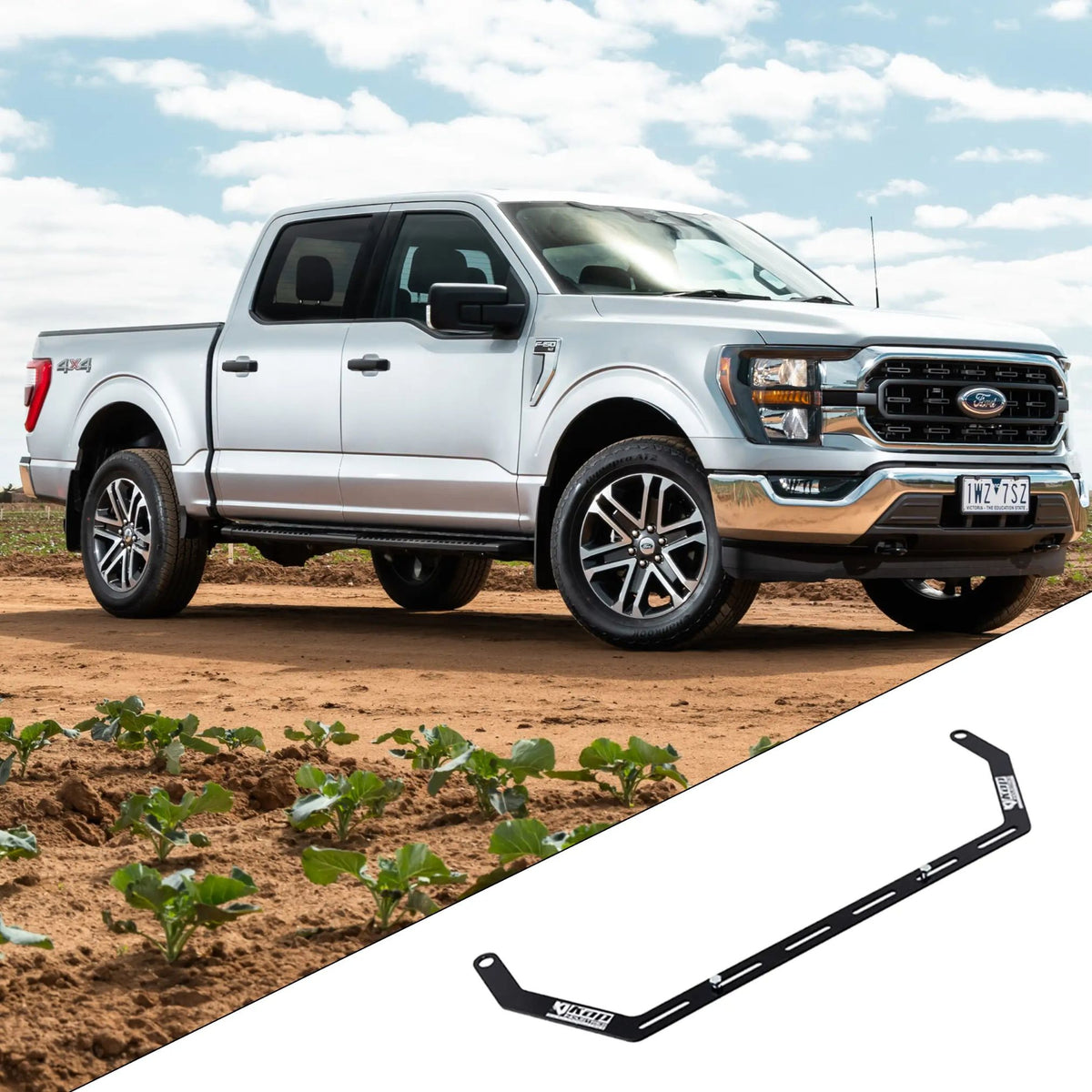

The KAP fire extinguisher bracket for the 2021 and newer Ford F-150 (14th gen, P702) mounts to the factory seat bolt points with no drilling and fits either front seat. Laser-cut from 11 gauge steel, powder-coated black, and backed by KAP's Lifetime Warranty. Proudly made in America.
-
Fits 2021 and newer Ford F-150 14th Gen pickup
-
Mounts to the factory seat bolt points, no drilling
-
Fits either front seat, driver or passenger
-
Straightforward install, standard hand tools
-
11 gauge steel, powder-coated black
-
M5 cage hardware included
-
Lifetime Warranty
-
Proudly made in America.
Couldn't load pickup availability
- Made in the USA
- Free express shipping over $99
- Model-specific fit
-
Will this fit my F-150?
It is confirmed for the 2021 and newer Ford F-150 pickup on the fourteenth-generation P702 platform. Have a 2015 to 2020 truck? That is the thirteenth generation, listed on its own page. Not sure about your model year or seat option? Contact us before you order.
-
Where does the fire extinguisher mount in a Ford F-150?

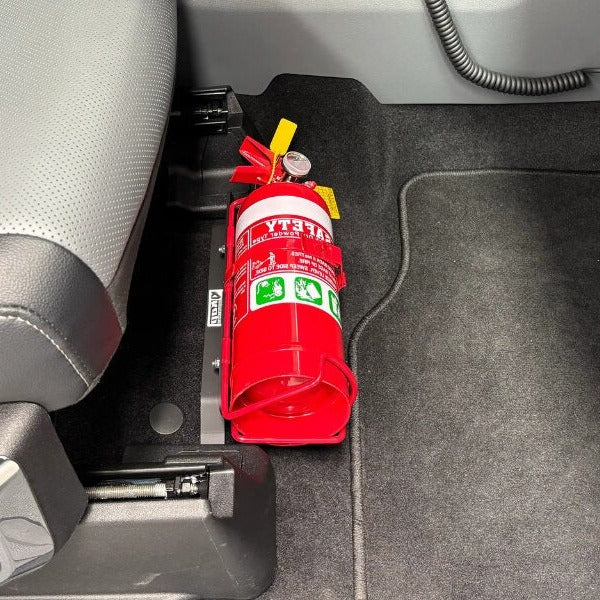

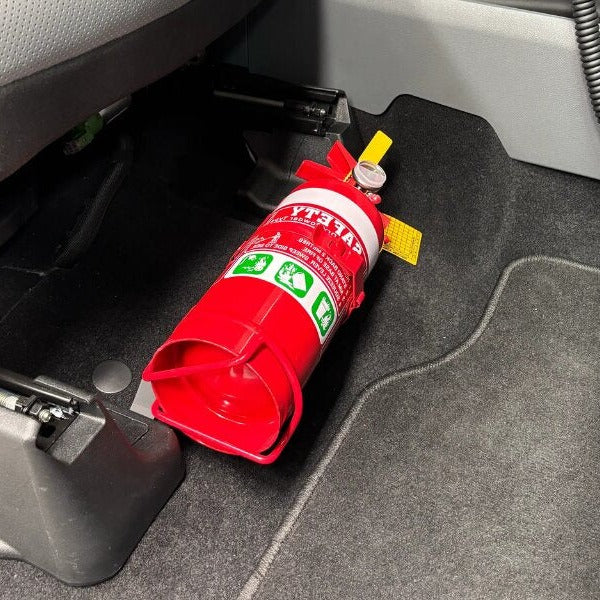

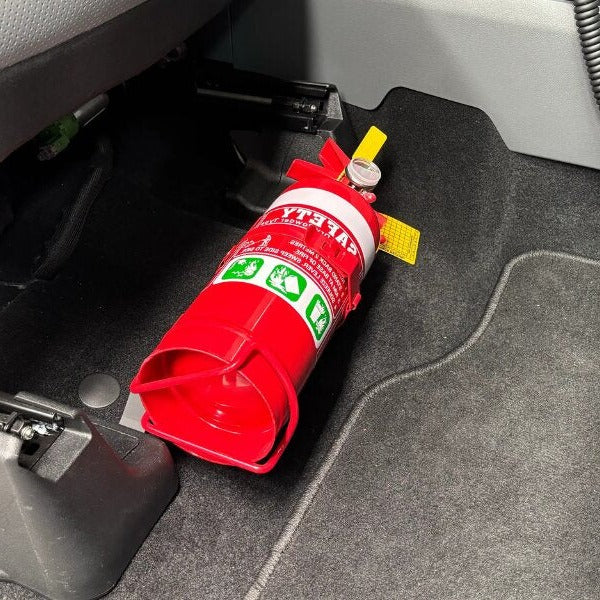

At the front seat. The bracket mounts to the factory seat bolt points at the seat foot, keeping the extinguisher low, fixed and within the driver's reach.
-
Do I need to drill anything?
No. The bracket mounts to the existing factory seat bolt points. Nothing is drilled, cut or modified.
-
Which side does it fit?
Either front seat, driver or passenger. Order two if you want one on each side.
-
How is it installed?
Designed for straightforward installation using standard hand tools. Fit the cage to the bracket first, then locate the bracket at the seat foot. Follow the vehicle manufacturer's seat fastener procedure. Check that the seat adjusts and locks normally and clears the belt and airbag components before you drive. Model-specific notes on this page override the general guide.
-
What is included?
The bracket, plus two M5 bolts, two nylock nuts and washers to attach your extinguisher cage. Use a metal-strapped, cage-style vehicle extinguisher mount that is correctly sized, in good condition and installed per its manufacturer's instructions. The extinguisher and cage are sold separately.
-
What is it made of?
11 gauge steel, laser-cut and powder-coated black. Proudly made in America.
-
Is it covered by a warranty?
Yes. KAP's Lifetime Warranty covers defects in materials and workmanship for the original purchaser. Full terms on the Warranty page.
-
Will it affect my seat?
Depending on the extinguisher fitted, the seat may not travel as far in one direction as it did before. It must still adjust and lock normally. If it does not, stop and contact us.
-
What extinguisher fits?
Sized for the 2.5 lb class of extinguisher commonly used in vehicles in the US. Exact cylinder dimensions the bracket accepts are listed under Extinguisher compatibility on the Installation page.
-
Can I use the extinguisher while driving?
Never remove or use the extinguisher while the vehicle is moving. Stop safely and secure the vehicle first.

DESIGNED FOR YOUR EXACT MAKE AND MODEL
CAD-designed for one exact make, model and year. It bolts into existing factory mounting points, so nothing is drilled, cut or modified and the install is fully reversible.
- Chassis
- 14th Gen (P702)
- Body style
- Ute/Pickup
- US model years
- 2021 onwards
- Seat
- Either front seat, driver or passenger
- Mounting points
- Factory points used
- Drilling
- No drilling. Mounts to the factory seat bolt points.
- Install
- Standard install, standard hand tools
- Hardware included
- 2 × M5 bolts, 2 × nylock nuts and washers
- Material
- 11 gauge steel, laser-cut and powder-coated black
- Made in
- Boise, Idaho, from American steel
- Built for
- 4WD / Overlanding
Extinguisher and cage sold separately. Use a metal-strapped, cage-style vehicle extinguisher mount that is correctly sized and installed per its manufacturer's instructions.
SPECIFIC BEATS UNIVERSAL
The fourteenth-generation F-150 is the best-selling vehicle in America doing what it has done for decades, only now with a hybrid option, a fold-flat work surface and a bed that can power a job site. These trucks tow, haul, run trails and sit in campsites a long way from help. A Ford F-150 fire extinguisher bracket from KAP mounts the extinguisher at the front seat, where the driver can reach it, instead of in a toolbox in the bed.
Designed specifically for the 2021 and newer Ford F-150 pickup on the fourteenth-generation P702 platform. It mounts to the factory seat bolt points, so nothing is drilled into the floor and nothing is modified. One bracket fits either front seat, driver or passenger. Want one on each side? Order two.
A universal bracket is a fair compromise on a truck floor right up until the first washboard road, when the strap loosens and the extinguisher becomes cargo. This bracket is shaped to the F-150 seat foot and holds it exactly there. Your vehicle is specific. Your safety gear should be too.
Designed for straightforward installation using standard hand tools. Fit the cage to the bracket first, locate the bracket at the front seat foot, then secure the seat per the vehicle manufacturer's seat fastener procedure. Two M5 bolts, two nylock nuts and washers are included to attach the cage. Use a metal-strapped, cage-style vehicle extinguisher mount that is correctly sized, in good condition and installed per its manufacturer's instructions. Extinguisher and cage sold separately.
Laser-cut from 11 gauge steel and powder-coated black, it disappears against the dark lower trim of a modern F-150 cab. Backed by KAP's Lifetime Warranty. Proudly made in America.
Depending on the extinguisher fitted, the seat may not travel as far in one direction as it did before. It must still adjust and lock normally. If it does not, stop and contact us.
Over 45,000 KAP brackets sold and 4.9 out of 5 from 1,600+ verified KAP customer reviews across the KAP range. Built for the middle of nowhere, where 'we'll fix it later' is not a plan.
Safety note. Mounts to your vehicle's seat fasteners. Follow the vehicle manufacturer's fastener procedure, check that the seat adjusts and locks normally and clears the belt and airbag components before driving, and use a metal-strapped vehicle extinguisher cage. Installation guide
All sales final for change of mind. Wrong fit? Covered by our Fitment Guarantee.
Included in your Fire Extinguisher Bracket for 2021+ Ford F-150 14th Gen purchase:
KAP Industries Fire Extinguisher Bracket for 2021+ Ford F-150 14th Gen
1x Bracket
M5 High Tensile Steel Locknuts
2x Locknuts
M5 High Tensile Steel Hex Bolts
2x Hex Bolts
M5 Flat Washers
2x Flat Washers
Sticker
1x Sticker
Limited Lifetime Warranty
On all brackets
MADE IN THE USA
Proven on Australian racetracks and Outback roads. Cut, finished and shipped from Boise, Idaho. More than a decade of testing went into these brackets before the first one was sold in the US.
Every bracket is CAD-designed for one exact make, model and year, laser-cut, powder-coated, and made in Boise, Idaho, from American steel.
Originally developed to meet demanding Australian motorsport expectations, with U.S. compliance pathways in development.
